No SQL Database

Large-scale NoSQL storage with Cassandra compatibility and optional vector capabilities for AI and application workloads.

GitHub Repository

The complete source code and examples are available in the GitHub repository:

Building Blocks - NoSQL Database

Overview

The No SQL Database building block provides large-scale NoSQL storage with Cassandra compatibility and optional vector capabilities for AI and application workloads. It offers a serverless, cloud-native database solution that scales automatically based on demand.

IBM Products Used

This building block leverages the following products and services:

Features

Cassandra-Based Architecture

  • Distributed Architecture: Multi-region, multi-cloud deployment
  • High Availability: No single point of failure
  • Linear Scalability: Scale horizontally by adding nodes
  • Tunable Consistency: Balance between consistency and availability

Vector Capabilities

  • Vector Collections: Store and query vector embeddings
  • Similarity Search: Find similar items based on vector distance
  • AI Integration: Seamless integration with AI/ML workflows
  • Hybrid Search: Combine traditional and vector search

Data API & CQL Support

  • REST API: HTTP-based Data API for easy integration
  • CQL (Cassandra Query Language): SQL-like query language
  • Multiple Client Libraries: Support for various programming languages
  • GraphQL Support: Modern API query language

Use Cases

  • AI/ML Applications: Store embeddings and perform similarity search
  • IoT Data Storage: Handle high-volume time-series data
  • User Profile Management: Store and retrieve user data at scale
  • Product Catalogs: Manage large product inventories
  • Real-Time Analytics: Process and analyze streaming data

Getting Started

Prerequisites

Requirements

  1. DataStax Astra DB account (free tier available)
  2. Application credentials (token or username/password)
  3. Client library for your programming language
  4. Network connectivity to Astra DB endpoints

Basic Setup

  1. Create an Astra DB database
  2. Sign up at astra.datastax.com
  3. Create a new database

  4. Generate application token

  5. Connect to your database

    from cassandra.cluster import Cluster
from cassandra.auth import PlainTextAuthProvider

cloud_config = {
    'secure_connect_bundle': '/path/to/secure-connect-database.zip'
}

auth_provider = PlainTextAuthProvider('token', 'your-token')
cluster = Cluster(cloud=cloud_config, auth_provider=auth_provider)
session = cluster.connect()

  6. Create a keyspace and table

    CREATE KEYSPACE IF NOT EXISTS my_keyspace
WITH replication = {'class': 'SimpleStrategy', 'replication_factor': 1};

CREATE TABLE my_keyspace.my_table (
    id UUID PRIMARY KEY,
    name TEXT,
    data TEXT
);

Architecture Pattern

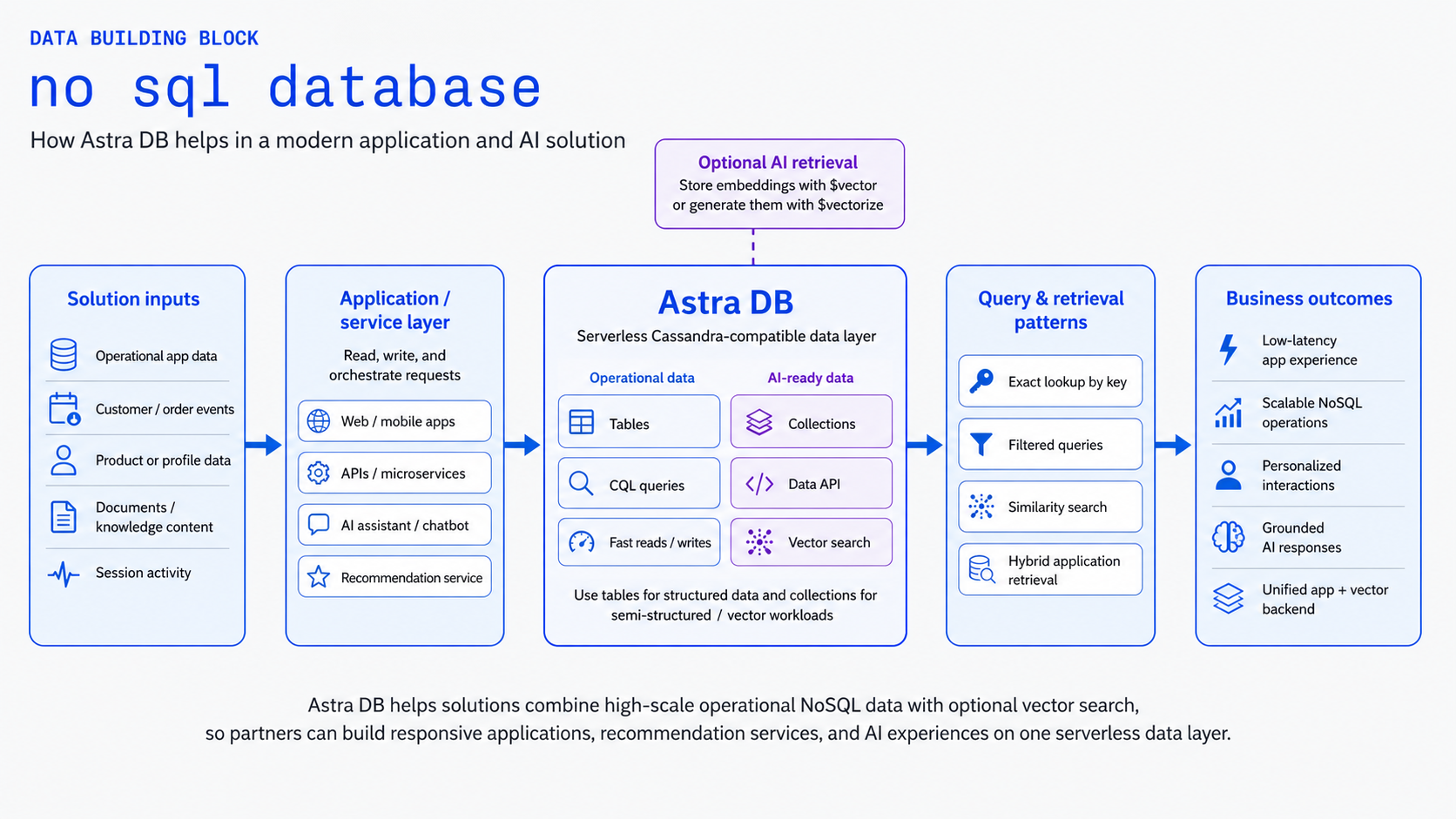

Astra DB architecture overview

flowchart LR
    subgraph Applications["Applications"]
        App1["Web App"]
        App2["Mobile App"]
        App3["AI Service"]
    end

    subgraph AstraDB["DataStax Astra DB"]
        API["Data API"]
        CQL["CQL Interface"]
        Vector["Vector Search"]
    end

    subgraph Storage["Distributed Storage"]
        Node1["Node 1"]
        Node2["Node 2"]
        Node3["Node 3"]
    end

    Applications --> AstraDB
    AstraDB --> Storage

Vector Search Example

# Create a vector-enabled collection
from astrapy.db import AstraDB

db = AstraDB(
    token="your-token",
    api_endpoint="your-endpoint"
)

collection = db.create_collection(
    collection_name="vector_collection",
    dimension=1536,  # OpenAI embedding dimension
    metric="cosine"
)

# Insert vectors
collection.insert_one({
    "_id": "doc1",
    "text": "Sample document",
    "$vector": [0.1, 0.2, 0.3, ...]  # 1536-dimensional vector
})

# Perform similarity search
results = collection.find(
    sort={"$vector": [0.1, 0.2, 0.3, ...]},
    limit=5
)

Best Practices

NoSQL Best Practices

  • Data Modeling: Design tables based on query patterns, not normalization
  • Partition Keys: Choose partition keys that distribute data evenly
  • Consistency Levels: Select appropriate consistency for your use case
  • Batch Operations: Use batch statements for multiple writes
  • Monitoring: Track performance metrics and query patterns
  • Indexing: Use secondary indexes judiciously

Performance Considerations

  • Partition Size: Keep partitions under 100MB for optimal performance
  • Query Patterns: Design tables to support your most common queries
  • Replication Factor: Balance between availability and write performance
  • Compaction: Configure compaction strategies based on workload
  • Connection Pooling: Reuse connections for better performance

Coming Soon

Upcoming Features

  • Detailed implementation guides
  • Sample applications with vector search
  • Integration patterns with watsonx.ai
  • Performance tuning guidelines
  • Migration guides from other databases

Resources

Support

For issues or questions, please refer to the GitHub repository or contact DataStax support.
