Data Observability

Monitor and ensure data pipeline quality and reliability with comprehensive observability capabilities powered by IBM Databand.

GitHub Repository

The complete source code and examples are available in the GitHub repository:

Building Blocks - Data Observability

Overview

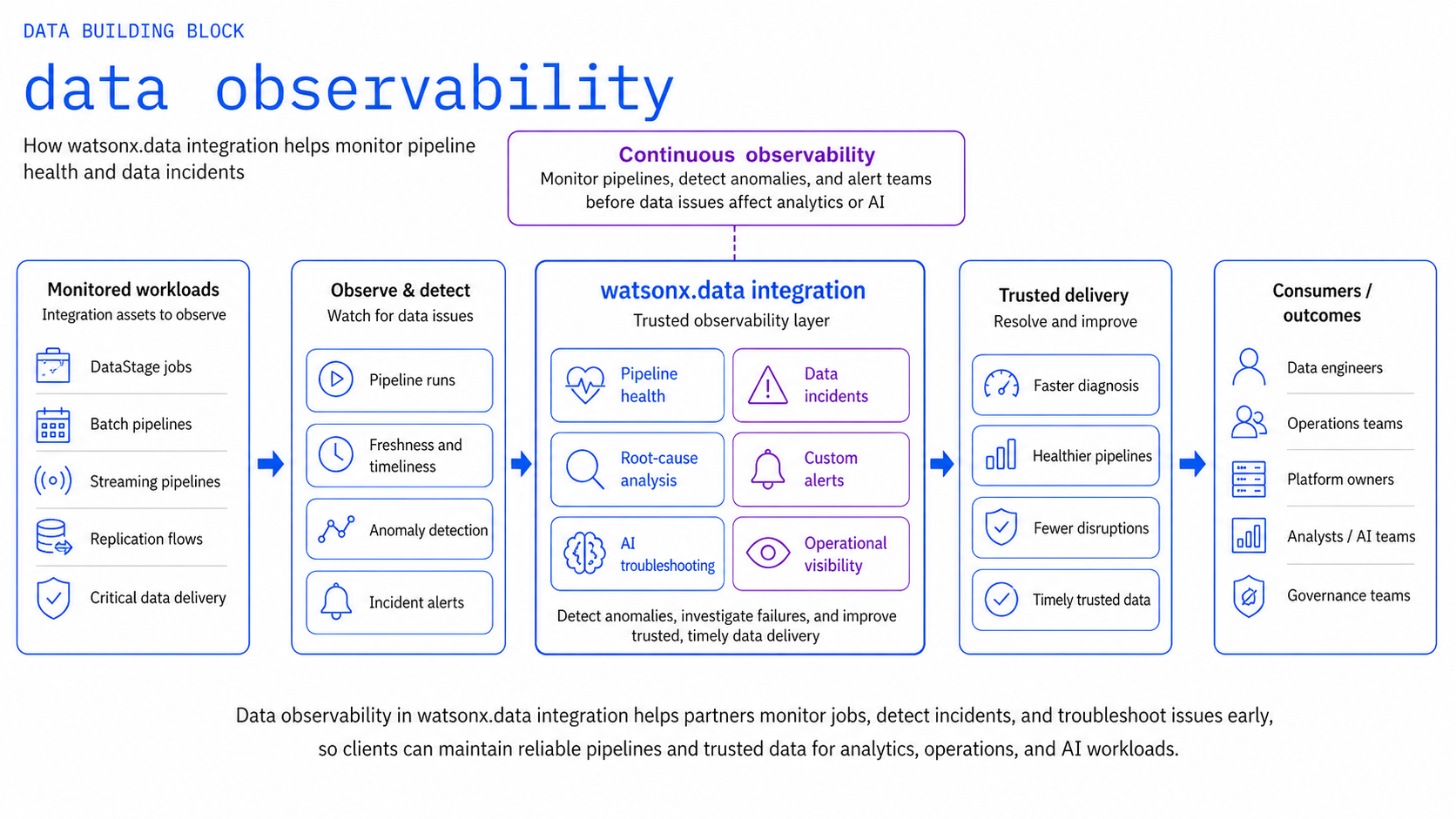

Data Observability provides comprehensive monitoring, alerting, and quality validation for data pipelines using IBM Databand — IBM's enterprise data observability platform. Track every pipeline run, surface data quality anomalies, enforce SLA thresholds, and maintain a complete OpenLineage-compliant lineage graph for all IBM Cloud data assets.

When to Use

Scenario Asset
Monitor pipeline run health and surface quality anomalies via REST API assets/databand-pipeline-monitor/
Emit OpenLineage events from a Python ETL, DataStage, or Spark job assets/openlineage-emitter/
Apply pre-built alert policies (null-rate, schema-drift, SLA-breach) to a pipeline assets/databand-alert-templates/
Archive pipeline run reports to IBM COS for audit compliance assets/databand-pipeline-monitor/ — COS archiving

IBM Products Used

Assets

1. Databand Pipeline Monitor

FastAPI service that wraps the Databand REST API v1 — list pipelines, inspect run health, retrieve quality metrics, and manage alert policies programmatically.

API Endpoints:

Method Path Description
GET /pipelines List all Databand-monitored pipelines
POST /pipelines/runs Run history with date filtering
GET /pipelines/runs/{uid} Full run detail + per-task metrics
GET /alerts List alert policies
POST /alerts Create threshold-based alert policy
POST /metrics/quality-summary Aggregated quality score for a run

Quick Start:

cd assets/databand-pipeline-monitor
cp .env.example .env
# Edit .env: DATABAND_URL, DATABAND_ACCESS_TOKEN, IBM_API_KEY
pip install -r requirements.txt
python main.py
# Swagger UI → http://localhost:8080/docs

2. OpenLineage Emitter

Python library and CLI that instruments any Python ETL script, IBM DataStage job, or Apache Spark application to emit OpenLineage events (START / COMPLETE / FAIL) to IBM Databand.

Quick Start:

cd assets/openlineage-emitter
pip install -r requirements.txt

# CLI usage
python emitter.py \
  --pipeline customer_etl \
  --job transform_orders \
  --inputs "cos://raw-bucket/orders.csv" \
  --outputs "iceberg://cos_catalog/sales.orders" \
  --event-type COMPLETE

Python context manager:

from emitter import PipelineRun

with PipelineRun(
    pipeline_name="customer_etl",
    job_name="transform_orders",
    inputs=["cos://raw-bucket/orders.csv"],
    outputs=["iceberg://cos_catalog/sales.orders"],
):
    # ETL code here
    pass

3. Databand Alert Templates

Pre-built YAML alert policy templates for common data quality failure modes.

Template Condition Severity
null_rate_policy null rate > 5% High
row_count_drop_policy row count < 80% of prior run Critical
schema_drift_policy schema change detected High
sla_breach_policy run duration > 2 hours Medium
quality_score_policy quality score < 0.85 High
duplicate_rate_policy duplicate rate > 2% Medium

Apply all templates:

cd assets/databand-alert-templates
python apply_alert_templates.py --all --pipeline customer_pipeline

Bob Mode

Give IBM Bob a Data Observability specialist persona.

Install (Windows):

Copy-Item bob-modes/base-modes/data-observability-builder.zip "$env:APPDATA\IBM Bob\User\globalStorage\ibm.bob-code\modes\"
Install (Linux / macOS):
cp bob-modes/base-modes/data-observability-builder.zip ~/.config/IBM\ Bob/User/globalStorage/ibm.bob-code/modes/

Restart IBM Bob — Data Observability Builder mode appears in the mode selector.

Bob Skills

Skill Zip Capabilities
databand-pipeline-setup databand-pipeline-setup.zip Databand pipeline onboarding, OpenLineage event design, alert policy authoring, IBM IAM auth patterns
unzip bob-skills/databand-pipeline-setup.zip

Open IBM Bob → Skills panel → enable databand-pipeline-setup.

Architecture

graph LR
    Pipelines["IBM Data Pipeline<br/>DataStage / Spark / Python"]
    Databand["IBM Databand<br/>/api/v1/lineage<br/>/api/v1/runs<br/>/api/v1/alert_defs"]
    Monitor["Databand Pipeline Monitor<br/>REST API"]
    COS["IBM Cloud Object Storage<br/>archived run reports"]

    Pipelines -->|OpenLineage events<br/>START / COMPLETE / FAIL| Databand
    Monitor -->|Metrics / Alerts| Databand
    Databand --> COS

Use Cases

Common Observability Scenarios

  • Pipeline Health Monitoring: Track pipeline execution status and performance
  • Data Quality Assurance: Validate data quality before AI consumption
  • Incident Response: Quickly identify and resolve data issues
  • Compliance Reporting: Generate audit trails and compliance reports

Best Practices

  1. Define Quality Metrics Early: Establish data quality standards before pipeline deployment
  2. Set Appropriate Alert Thresholds: Balance between noise and missing critical issues
  3. Monitor Data Freshness: Track data arrival times and processing delays
  4. Document Pipeline Dependencies: Maintain clear lineage and dependency maps
  5. Regular Review: Periodically review and update monitoring rules

Resources

Support

For issues or questions, please refer to the GitHub repository or contact IBM support.
