Data Lineage

Track data transformations and flow across your data ecosystem for compliance, governance, and impact analysis.

Overview

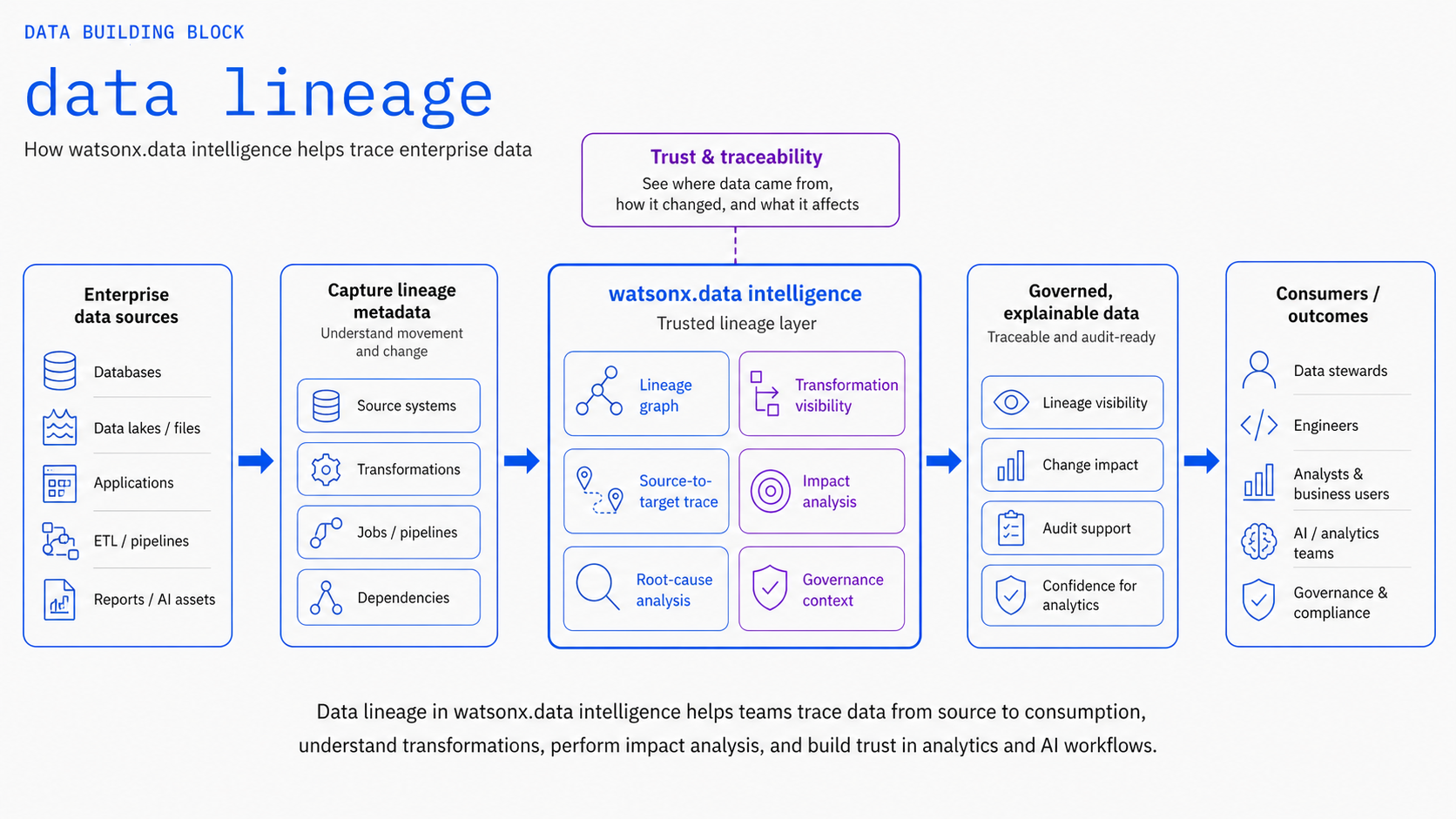

Data Lineage provides end-to-end visibility into how data moves and transforms across your organization. This building block helps teams understand data origins, track transformations, assess impact of changes, and maintain compliance with regulatory requirements.

Key Features

End-to-End Lineage Tracking

• Automatic lineage capture from data pipelines
• Cross-system lineage visualization
• Column-level lineage tracking
• Historical lineage analysis

Transformation Tracking

• Track data transformations and business logic
• Document data quality rules and validations
• Monitor schema changes and evolution
• Capture metadata at each transformation step

Impact Analysis

• Assess downstream impact of data changes
• Identify affected reports and dashboards
• Trace data dependencies across systems
• Root cause analysis for data issues

Compliance and Governance

• Audit trail for regulatory compliance
• Data classification and sensitivity tracking
• Access control and usage monitoring
• Automated compliance reporting

IBM Products

• IBM watsonx.data Intelligence: Data governance and lineage tracking
• IBM Governance and Catalog: Enterprise metadata management
• IBM Manta: Automated data lineage solution

Use Cases

Common Lineage Scenarios

• Regulatory Compliance: Track data for GDPR, CCPA, and other regulations
• Impact Analysis: Understand downstream effects before making changes
• Data Quality: Trace data quality issues to their source
• Migration Planning: Map data flows for system migrations

Architecture

graph TB
    subgraph Data Sources
        DB1[(Database 1)]
        DB2[(Database 2)]
        Files[File Systems]
    end

    subgraph Data Pipelines
        ETL[ETL Jobs]
        Transform[Transformations]
    end

    subgraph Lineage Platform
        Capture[Lineage Capture]
        Store[(Metadata Store)]
        Analyze[Impact Analysis]
        Visualize[Visualization]
    end

    subgraph Outputs
        Reports[Reports & Dashboards]
        Compliance[Compliance Reports]
        Alerts[Impact Alerts]
    end

    DB1 --> ETL
    DB2 --> ETL
    Files --> ETL
    ETL --> Transform

    ETL -.->|Metadata| Capture
    Transform -.->|Metadata| Capture

    Capture --> Store
    Store --> Analyze
    Store --> Visualize

    Analyze --> Reports
    Analyze --> Compliance
    Analyze --> Alerts
    Visualize --> Reports

    style DB1 fill:#e1f5ff
    style DB2 fill:#e1f5ff
    style Files fill:#e1f5ff
    style Store fill:#fff4e1
    style Reports fill:#e8f5e9
    style Compliance fill:#e8f5e9
    style Alerts fill:#e8f5e9

Getting Started

Prerequisites

• IBM watsonx.data Intelligence or IBM Manta
• Access to data sources and pipelines
• Metadata collection enabled

Quick Start

1. Configure Lineage Collection

   # lineage-config.yaml
   lineage:
     enabled: true
     capture_level: column
     sources:
       - type: watsonx.data
         connection: wxd-prod
       - type: db2
         connection: db2-warehouse


2. Enable Automatic Lineage Capture

   from ibm_watsonx_data import LineageTracker

   tracker = LineageTracker(config="lineage-config.yaml")

   # Lineage is automatically captured during pipeline execution
   @tracker.track_lineage
   def transform_data(source_table, target_table):
       # Your transformation logic
       pass


3. Query Lineage Information

   # Get lineage for a specific table
   lineage = tracker.get_lineage(
       table="sales_summary",
       direction="upstream",  # or "downstream"
       depth=3
   )

   # Visualize lineage
   tracker.visualize_lineage(lineage)


4. Perform Impact Analysis

   # Analyze impact of changing a column
   impact = tracker.analyze_impact(
       table="customer_data",
       column="email_address",
       change_type="schema_change"
   )

   print(f"Affected tables: {impact.affected_tables}")
   print(f"Affected reports: {impact.affected_reports}")


Architecture

┌─────────────────────────────────────────────────────────────┐
│                    Data Sources                              │
│  (Databases, Data Lakes, APIs, Files)                        │
└────────────────────┬────────────────────────────────────────┘
                     │
                     │ Metadata & Lineage
                     ▼
┌─────────────────────────────────────────────────────────────┐
│              Lineage Collection Layer                        │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐      │
│  │   Scanners   │  │  Extractors  │  │  Parsers     │      │
│  └──────────────┘  └──────────────┘  └──────────────┘      │
└────────────────────┬────────────────────────────────────────┘
                     │
                     │ Lineage Graph
                     ▼
┌─────────────────────────────────────────────────────────────┐
│              Lineage Repository                              │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐      │
│  │  Graph DB    │  │  Metadata    │  │  Analytics   │      │
│  └──────────────┘  └──────────────┘  └──────────────┘      │
└────────────────────┬────────────────────────────────────────┘
                     │
                     │ Lineage APIs & Visualizations
                     ▼
┌─────────────────────────────────────────────────────────────┐
│                  Consumption Layer                           │
│  (Dashboards, Reports, Impact Analysis, Compliance)         │
└─────────────────────────────────────────────────────────────┘

Lineage Levels

Table-Level Lineage

Tracks relationships between tables and datasets:

source_table → transformation → target_table

Column-Level Lineage

Tracks how individual columns are derived:

source.column_a + source.column_b → target.calculated_field

Job-Level Lineage

Tracks data flows through processing jobs:

job_1 → intermediate_data → job_2 → final_output

Best Practices

1. Enable Automatic Capture: Use automated lineage collection whenever possible
2. Document Business Logic: Add business context to technical lineage
3. Regular Validation: Periodically validate lineage accuracy
4. Access Control: Implement appropriate security for sensitive lineage data
5. Performance Optimization: Balance lineage detail with system performance

Integration Examples

With Data Pipelines

from ibm_watsonx_data import Pipeline, LineageTracker

pipeline = Pipeline("customer_analytics")
tracker = LineageTracker()

@pipeline.task
@tracker.track_lineage
def extract_customers(source_db):
    return source_db.query("SELECT * FROM customers")

@pipeline.task
@tracker.track_lineage
def transform_customers(raw_data):
    # Transformation logic
    return transformed_data

@pipeline.task
@tracker.track_lineage
def load_customers(data, target_db):
    target_db.insert("customer_summary", data)

With Data Quality

from ibm_watsonx_data import DataQuality, LineageTracker

quality = DataQuality()
tracker = LineageTracker()

# Link quality checks with lineage
@quality.check("email_format")
@tracker.track_lineage
def validate_email(data):
    # Validation logic
    return validated_data

Resources

• GitHub Repository
• IBM Manta Documentation
• IBM watsonx.data Intelligence Documentation

Support

For issues or questions, please refer to the GitHub repository or contact IBM support.
